EMAGE:6131

Wnt1 wingless-related MMTV integration site 1 ( MGI:98953)
TS15 (9.5 dpc)
in situ hybridisation

Data Images


3D reconstructed object showing signal.	All sections along the X-axis, as movie.	All sections along the Y-axis, as movie.	All sections along the Z-axis, as movie.	Photograph prior to 3D imaging.

View 3D opt image:
Download 3D images in woolz format
Expression pattern clarity:
Find spatially similar expression patterns:

Notes:

This is a traditionally produced wholemount in situ hybridisation stained using alkaline phosphatase + NBT/BCIP. It has been imaged using Optical Projection Tomography using visible light. In the OPT images, the signal is visible as the brightest regions.

Expression Pattern Description

Spatial Annotation:

Annotation colour key:

	strong
	moderate
	weak
	possible
	not detected

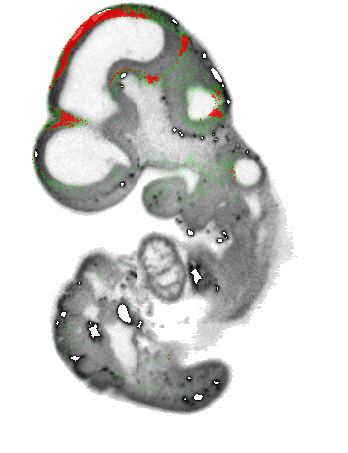

3D mapping

View mapped 3D expression image

Download individual expression domains:

6131_voxel_strong_3D_1.wlz

6131_voxel_possible_3D_1.wlz

(what is wlz format?)

Download all expression domains:

EMAGE:6131_all_domains.zip

Find spatially similar expression patterns:

Morphological match to the template:

Text Annotation:

Structure

Level

Pattern

Notes

embryo

detected

Annotation Validation:

Submitter + EMAGE Editor

Detection Reagent

Type:	in situ hybridisation probe
Identifier:	Wnt1 probeA
Entity Detected:	Wnt1, wingless-related MMTV integration site 1 ( MGI:98953)
Sequence:	sense strand is shown >Wnt1 probeA AGTGGCTGCTTCAGCCCAGCAGCCAGGACAGCGAACCATGCTGCCTGCGGCCCGCCTCCAGACTTATTAG AGCCAGCCTGGGAACTCGCATCACTGCCCTCACCGCTGTGTCCAGTCCCACCGTCGCGGACAGCAACCAC AGTCGTCAGAACCCCAGCACAGAACCAGCAAGGCCAGGCAGGCCATGGGGCTCTGGGCGCTGCTGCCCAG CTGGGTTTCTACTACGTTGCTACTGGCACTGACCGCTCTGCCCGCAGCCCTAGCTGCCAACAGTAGTGGC CGATGGTGGGGCATCGTGAACATAGCCTCCTCCACGAACCTGTTGACGGATTCCAAGAGCCTGCAGCTGG TGCTCGAGCCCAGTCTGCAGCTGCTGAGCCGCAAGCAGCGGCGACTGATCCGACAGAACCCGGGGATCCT GCACAGCGTGAGTGGAGGGCTCCAGAGCGCCGTGCGAGAGTGCAAATGGCAATTCCGAAACCGCCGCTGG AACTGCCCCACTGCTCCGGGGCCCCACCTCTTCGGCAAGATCGTCAACCGAGGCTGCCGAGAAACAGCGT TCATCTTCGCAATCACCTCCGCCGGGGTCACACATTCCGTGGCGCGCTCCTGCTCCGAAGGCTCCATCGA GTCCTGCACCTGCGACTACCGGCGGCGCGGCCCTGGGGGCCCCGACTGGCACTGGGGGGGCTGCAGTGAC AACATCGATTTTGGTCGCCTCTTTGGCCGAGAGTTCGTGGACTCCGGGGAGAAGGGGCGGGACCTACGCT TCCTCATGAACCTTCACAACAACGAGGCAGGGCGAACGACCGTGTTCTCTGAGATGCGCCAAGAGTGCAA ATGCCACGGGATGTCCGGCTCCTGCACGGTGCGCACGTGTTGGATGCGGCTGCCCACGCTGCGCGCTGTG GGCGACGTGCTGCGCGACCGCTTCGACGGTGCCTCCCGCGTCCTTTACGGCAACAGAGGCAGCAACCGCG CCTCGCGGGCGGAGCTGCTGCGCCTGGAGCCCGAAGACCCCGCGCACAAGCCTCCCTCCCCTCACGACCT CGTCTACTTCGAGAAATCGCCCAACTTCTGCACGTACAGTGGCCGCCTGGGCACAGCTGGCACAGCTGGA CGAGCTTGCAACAGCTCGTCTCCCGCGCTGGACGGCTGTGAGCTGCTGTGCTGTGGCCGAGGCCACCGCA CGCGCACGCAGCGCGTCACGGAGCGCTGCAACTGCACCTTCCACTGGTGCTGCCACGTCAGCTGCCGCAA CTGCACGCACACGCGCGTTCTGCACGAGTGTCTATGAGGTGCCGCGCCTCCGGGAACGGGAACGCTCTCT TCCAGTTCTCAGACACACTCACTGGTCCTGATGTTTGCCCACCCTACCGCGTCCAGCCACAGTCCCAGGG TTCATAGCGATCCATCTCTCCCACCTCCTACCTGGGGACTCCTGAAACCACTTGCCTGAGTCGGCTCGAA CCCTTTTGCCATCCTGAGGGCCCTGACCCAGCCTACCTCCCTCCCTCTTTGAGGGAGACTCCTTTTGCAC TGCCCCCCAATTTGGCCAGAGGGTGAGAGAAAGATTCTTCTTCTGGGGTGGGGGTGGGGAGGTCAACTCT TGAAGGTGTTGCGGTTCCTGATGTATTTTGCGCTGTGACCTCTTTGGGTATTATCACCTTTCCTTGTCTC TCAGGTCCCTATAGGTCCCTTGAGTTCTCTAACCAGCACCTCTGGGCTTCAAGGCCTTTCCCCTCCCACC TGTAGCTGAAGAGTTTCCGAGTTGAAAGGGCACGGAAAGCTAAGTGGGAAAGGAGGTTGCTGGACCCAGC AGCAAAACCCTACATTCTCCTTGTCTCTGCCTCGGAGCCATTGAACAGCTGTGAACCATGCCTCCCTCAG CCTCCTCCCACCCCTTCCTGTCCTGCCTCCTCATCACTGTGTAAATAATTTGCACCGAAATGTGGCCGCA GAGCCACGCGTTCGGTTATGTAAATAAAACTATTTATTGTGCTGGGTTCCAGCCTGGGTTGCAGAGACCA CCCTCACCCCACCTCACTGCTCCTCTGTTCTGCTTGCCAGTCCTTTTGTTATCCGACCTTTTTTCTCTTT TACCCAGCTTCTCATAGGCGCCCTTGCCCACCGGATCAGTATTTCCTTCCACTGTAGCTATTAGTGGCTC CTCGCCCCCACCAATGTAGTATCTTCCTCTGAGGAATA
	nt 138 - nt 2345 of BC005449.1
Notes:	The Wnt1 template used to generate the probe in this study was obtained from A. McMahon. The insert sequence of this clone has been verified by Summerhurst and Murphy (it spans nt 138-2345 of the Wnt1 cDNA sequence BC005449.1). Probe was transcribed from the entire insert.
Chemistry:	RNA
Strand:	antisense
Label:	digoxigenin

Specimen

Organism:	mouse
Strain:	CD1
Age:	9.5 dpc
Theiler Stage:	TS15
Mutations:	none (wild-type)
Preparation:	opt

Procedures

Fixation:	4% paraformaldehyde
Embedding:	agarose
Staining procedure:	alkaline phosphatase + NBT/BCIP

General Information

Authors:	Kristen Summerhurst, Paula Murphy
Principal investigator:	Paula Murphy, Trinity College Dublin, Zoology Department, Dublin, Ireland 2
Submitted by:	Kristen Summerhurst, Trinity College Dublin, Zoology Department, Dublin, Ireland 2
Experiment type:	non-screen
