EMAGE:3966

Wnt11 wingless-related MMTV integration site 11 ( MGI:101948)
TS19 (11.5 dpc)
in situ hybridisation

Data Images
EMAGE:3966 EMAGE:3966 EMAGE:3966 EMAGE:3966 EMAGE:3966
3D reconstructed object showing signal. All sections along the X-axis, as movie. All sections along the Y-axis, as movie. All sections along the Z-axis, as movie. Photograph prior to 3D imaging.

View 3D opt image: EMAGE genex expression entry
Download 3D images in woolz format
Expression pattern clarity: no stars
Find spatially similar expression patterns: Find spatially similar patterns
Notes:
This is a traditionally produced wholemount in situ hybridisation stained using alkaline phosphatase + NBT/BCIP. It has been imaged using Optical Projection Tomography using visible light. In the OPT images, the signal is visible as the brightest regions.
Expression Pattern Description
Spatial Annotation:
EMAGE:3966Annotation colour key:
strong strong
gene expression moderate moderate
gene expression weak weak
gene expression possible possible
gene expression not detected not detected

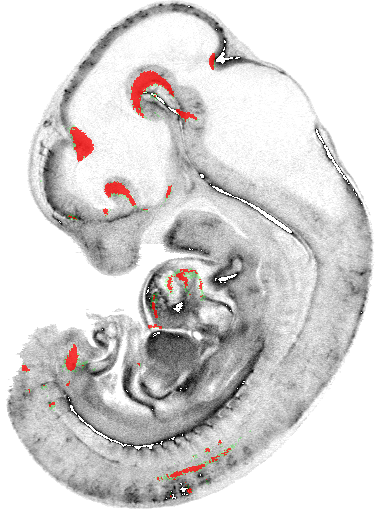

3D mapping

View mapped 3D expression image EMAGE genex expression entry
Download individual expression domains:
3966_voxel_strong_3D_1.wlz
3966_voxel_possible_3D_1.wlz
(what is wlz format?)
Download all expression domains: EMAGE:3966_all_domains.zip
Find spatially similar expression patterns: EMAGE spatially similar patterns
Morphological match to the template: no stars
Text Annotation:
StructureLevelPatternNotes
embryo
detected detected
Annotation Validation: EMAGE Editor
Detection Reagent
Type:in situ hybridisation probe
Identifier:Wnt11 cloneA
Entity Detected:Wnt11, wingless-related MMTV integration site 11 ( MGI:101948)
Notes:The template used to generate the Wnt11 probe used in this study was obtained from A. McMahon. Probe was transcribed from the entire insert. The insert sequence of the clone has been verified by Summerhurst and Murphy. It spans nt 169-1821 of the Wnt11 cDNA RefSeq NM_009519.1, yet also includes a 376nt 5' extension which spans nt 1510436-1510650 and nt 1511363-1511525 of the genomic contig assembly NW_001030877.1. Editor's note: the template clone has nucleotide similarity to both Wnt11 and the overlapping 'EST gene' ENSMUSESTG00000022193.
Chemistry:RNA
Strand:antisense
Label:digoxigenin
Specimen
Organism:mouse
Strain:CD1
Age:11.5 dpc
Theiler Stage:TS19
Mutations:none (wild-type)
Preparation:opt
Procedures
Fixation:4% paraformaldehyde
Embedding:agarose
Staining procedure:alkaline phosphatase + NBT/BCIP
General Information
Authors:Kristen Summerhurst, Paula Murphy
Principal investigator:Paula Murphy, Trinity College Dublin, Zoology Department, Dublin, Ireland 2
Submitted by:Kristen Summerhurst, Trinity College Dublin, Zoology Department, Dublin, Ireland 2
Experiment type:non-screen
